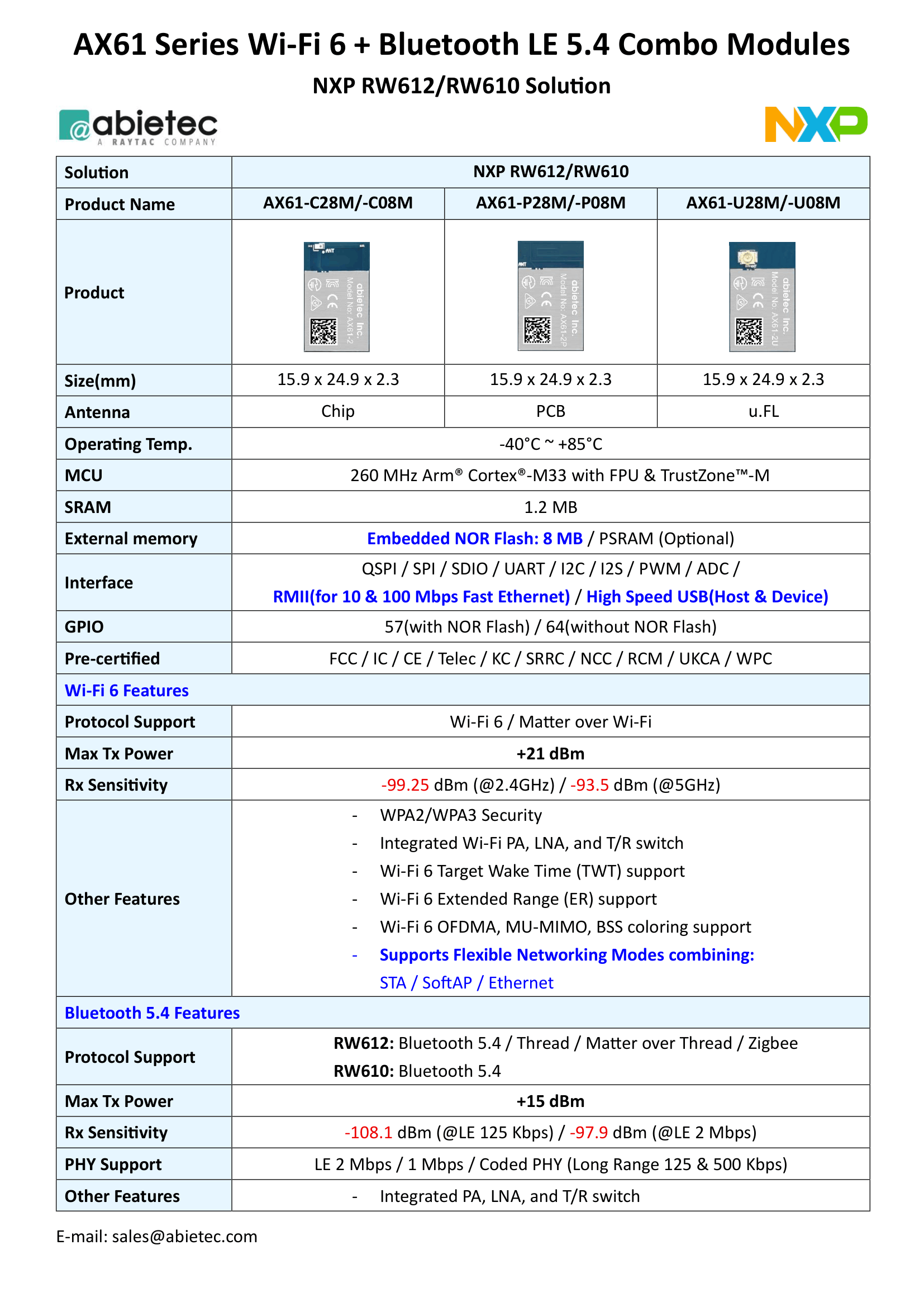

AX61-U08M
* NXP RW610 Wi-Fi 6 + Bluetooth 5.4 Combo Solution
* NXP Registered Partner
* Wi-Fi 6 Certified.
* BT5.4 Bluetooth Specification Certified.
* Intended Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* 260 MHz ARM® Cortex™-M33 processor with FPU and TrustZone®-M technology
* 1.2MB SRAM(On-chip)
* 8 MB External flash(Embedded in module)
* Dimension: 15.9 × 24.9 × 2.3 mm (0.62 × 0.98 × 0.091 inches)
* 57 GPIO
* u.FL Connector for External Antenna
* Interfaces: High-speed USB, RMII(Fast Ethernet), QSPI, SPI, UART, I2C, I2S, PWM, ADC, and NFC
* Operating temperature: -40 to +85°C
* Robust multiprotocol wireless MCU ideally suited for Wi-Fi 6, BLE 5.4, and Matter over Wi-Fi applications.
* NXP Registered Partner
* Wi-Fi 6 Certified.
* BT5.4 Bluetooth Specification Certified.
* Intended Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* 260 MHz ARM® Cortex™-M33 processor with FPU and TrustZone®-M technology
* 1.2MB SRAM(On-chip)
* 8 MB External flash(Embedded in module)
* Dimension: 15.9 × 24.9 × 2.3 mm (0.62 × 0.98 × 0.091 inches)
* 57 GPIO
* u.FL Connector for External Antenna
* Interfaces: High-speed USB, RMII(Fast Ethernet), QSPI, SPI, UART, I2C, I2S, PWM, ADC, and NFC
* Operating temperature: -40 to +85°C
* Robust multiprotocol wireless MCU ideally suited for Wi-Fi 6, BLE 5.4, and Matter over Wi-Fi applications.
