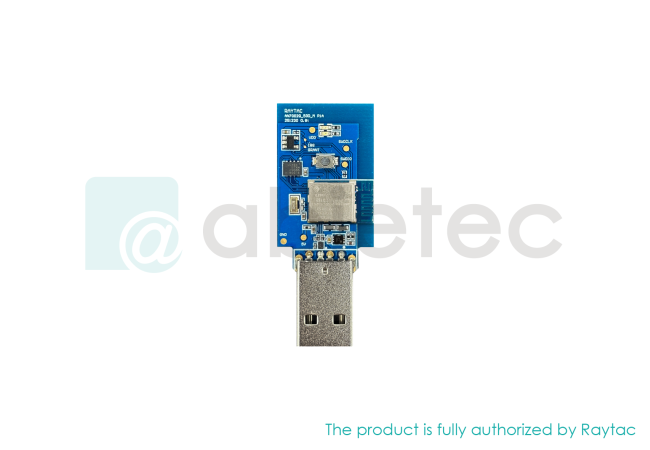

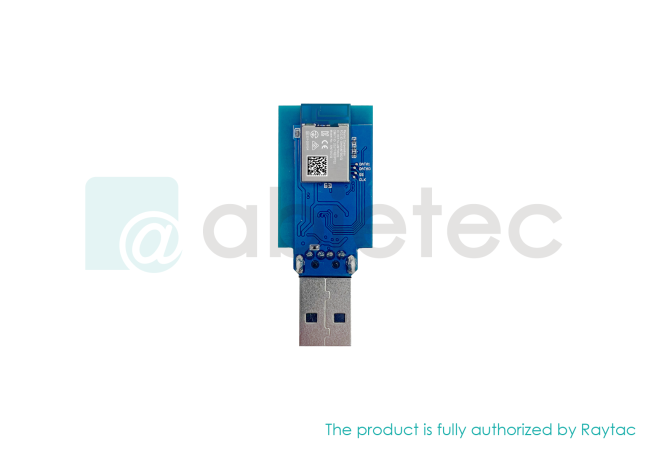

AN7002QP53P-RX
*** This product is fully authorized by Raytac ***
* Nordic nRF70002+nRF5340 SoC Solution Dongle
* Built by AN7002Q-P + MDBT53-P1M
* Type A USB
* Includes on-board External Flash: MX25R6435F.
* Dimension：38 x 21 x 3.9 mm(1.50 × 0.83 × 0.15 inches) (excluding Type A USB Connector)
WiFi:
* Nordic nRF7002 WiFi Solution
* WiFi 6
* Dual Band 2.4 GHz and 5 GHz
* Wi-Fi specification: Wi-Fi 6
* Complies with 802.11a/b/g/n/ac/ax
* Supports Target Wake Time (TWT)
* Supports Wi-Fi 6 Station (STA)
* 20 MHz channel bandwidth
* 64 QAM (MCS7), 86 Mbps PHY throughput
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* RED-DA(EN18031) Compliant.
* Dimension: 10.8 x 17.1 x 2.1 mm (0.43 by 0.67 by 0.08 inches)
* PCB antenna
Bluetooth:
* Nordic nRF5340 SoC Solution
* Dual-core Arm® Cortex® M33
* 1MB/256KB Flash Memory; 512kB/ 64kB RAM
* Bluetooth specification v5.4
* Supports Bluetooth Direction Finding & Mesh
* Supports Bluetooth low energy audio
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* Dimension: 9.3 x 14.3 x 1.6 mm
* 48 GPIO
* PCB antenna
* Interfaces: SPI, QSPI, High Speed SPI, UART, I2C, I2S, PWM, ADC, NFC, and USB
* Operating temperature: -40 to +85°C
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (802.15.4) ultra low-power wireless applications.
* A recommended 3rd-party module by Nordic Semiconductor.
* Nordic nRF70002+nRF5340 SoC Solution Dongle
* Built by AN7002Q-P + MDBT53-P1M
* Type A USB
* Includes on-board External Flash: MX25R6435F.
* Dimension：38 x 21 x 3.9 mm(1.50 × 0.83 × 0.15 inches) (excluding Type A USB Connector)
WiFi:
* Nordic nRF7002 WiFi Solution
* WiFi 6
* Dual Band 2.4 GHz and 5 GHz
* Wi-Fi specification: Wi-Fi 6
* Complies with 802.11a/b/g/n/ac/ax
* Supports Target Wake Time (TWT)
* Supports Wi-Fi 6 Station (STA)
* 20 MHz channel bandwidth
* 64 QAM (MCS7), 86 Mbps PHY throughput
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* RED-DA(EN18031) Compliant.
* Dimension: 10.8 x 17.1 x 2.1 mm (0.43 by 0.67 by 0.08 inches)
* PCB antenna
Bluetooth:
* Nordic nRF5340 SoC Solution
* Dual-core Arm® Cortex® M33
* 1MB/256KB Flash Memory; 512kB/ 64kB RAM
* Bluetooth specification v5.4
* Supports Bluetooth Direction Finding & Mesh
* Supports Bluetooth low energy audio
* Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
* RoHS & Reach Compliant.
* Dimension: 9.3 x 14.3 x 1.6 mm
* 48 GPIO
* PCB antenna
* Interfaces: SPI, QSPI, High Speed SPI, UART, I2C, I2S, PWM, ADC, NFC, and USB
* Operating temperature: -40 to +85°C
* Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (802.15.4) ultra low-power wireless applications.
* A recommended 3rd-party module by Nordic Semiconductor.
PRODUCT INFO
SPECIFICATION
DOCUMENT

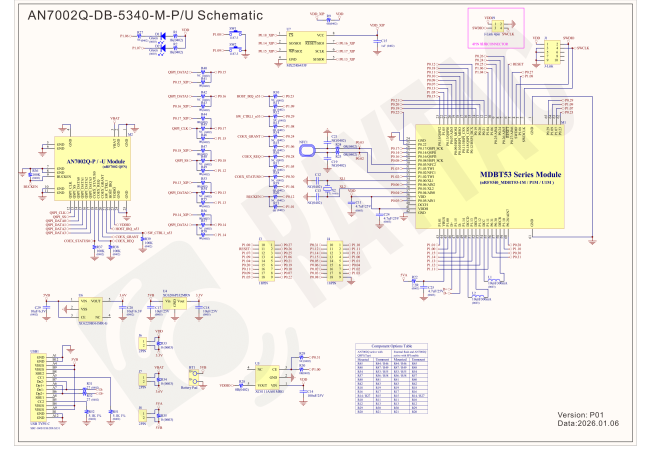

It provides a convenient tool to ease the implement for add-on Wi-Fi 6 + Bluetooth 5.4 connectivity.
AN7002QP53P-RX also offers robust memory through an on-board External Flash: MX25R6435F for Wi-Fi + Bluetooth firmware development.
Highlight of nRF7002 Solution
* Wi-Fi® 6 companion IC with integrated RF.
* Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 a/b/g/n/ac)
* Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring
* Supports Wi-Fi CERTIFIED 6™, Wi-Fi CERTIFIED™, Wi-Fi Enhanced Open™
* Supports WPA3™, WPA2™, WPA™ - Personal and Enterprise, Protected Management Frames
* Supports WMM®, WMM - Power Save, Wi-Fi Agile Multiband™, Wi-Fi Direct®
* Dual-band 2.4 GHz and 5 GHz operation in 1x1 (SISO) operation.
* 3-wire or 4-wire coexistence interface and compatible with nRF53 and nRF54 series module.
Highlight of nRF5340 Solution
* Dual-core Arm® Cortex® M33
* Supports Bluetooth low energy audio (LE Audio)
* Supports Bluetooth Direction Finding & Mesh
* Supports temperature extended to 105 °C
Quick Specifications
WiFi
WiFi
- Wi-Fi® 6 companion IC with integrated RF.
- Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 a/b/g/n/ac)
- Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring
- Supports Wi-Fi CERTIFIED 6™, Wi-Fi CERTIFIED™, Wi-Fi Enhanced Open™
- Supports WPA3™, WPA2™, WPA™ - Personal and Enterprise, Protected Management Frames
- Supports WMM®, WMM - Power Save, Wi-Fi Agile Multiband™, Wi-Fi Direct®
- Dual-band 2.4 GHz and 5 GHz operation in 1x1 (SISO) operation.
- 3-wire or 4-wire coexistence interface and compatible with Raytac MDBT53 series module.
Bluetooth
Network Core
• 64 MHz operation
• 256 kB flash
• 64 kB low leakage RAM
• Bluetooth® 5.4, IEEE 802.15.4-2006, 2.4 GHz transceiver
• -98 dBm sensitivity in 1 Mbps Bluetooth Low Energy mode
• -104 dBm sensitivity in 125 kbps Bluetooth Low Energy mode (long range)
• -101 dBm sensitivity in IEEE 802.15.4
• -20 to +3 dBm configurable TX power
• On-air compatible with nRF52, nRF51, nRF24L, and nRF24AP Series
• Supported data rates:
• Bluetooth 5.4 - 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
• IEEE 802.15.4-2006 - 250 kbps
• Proprietary 2.4 GHz - 2 Mbps, 1 Mbps
• Angle of Arrival (AoA) and Angle of Departure (AoD) direction finding
• 128-bit AES/ECB/CCM/AAR co-processor (on-the-fly packet encryption)
• SPI master/slave with EasyDMA
• I2C compatible two-wire master/slave with EasyDMA
• UART (CTS/RTS) with EasyDMA
• Up to 3x 32-bit timer with counter mode
• Up to 2x real-time counter (RTC)
Application Core
• ARM® Cortex®-M33 with TrustZone® technology
• 128 MHz or 64 MHz operation
• Single-precision floating-point unit (FPU)
• Digital signal processing (DSP) instructions
• 1 MB flash and 512 kB low leakage RAM
• ARM TrustZone CryptoCell™-312 security subsystem
• USB 2.0 full speed (12Mbps) controller
• QSPI peripheral for communicating with an external flash memory device
• Near field communication (NFC-A) tag with wake-on field
• Up to 5x SPI master/slave with EasyDMA
• Up to 4x I2C compatible two-wire master/slave with EasyDMA
• Up to 4x UART (CTS/RTS) with EasyDMA
• Audio peripherals: I2S, digital microphone interface (PDM)
• Up to 4x pulse width modulator (PWM) units with EasyDMA
• 12-bit, 200 ksps ADC with EasyDMA - eight configurable channels with programmable gain
• Up to 3x 32-bit timer with counter mode
• Up to 2x 24-bit real-time counter (RTC)
• Up to 2x Quadrature decoder (QDEC)
• 64 kB low leakage RAM
• Bluetooth® 5.4, IEEE 802.15.4-2006, 2.4 GHz transceiver
• -98 dBm sensitivity in 1 Mbps Bluetooth Low Energy mode
• -104 dBm sensitivity in 125 kbps Bluetooth Low Energy mode (long range)
• -101 dBm sensitivity in IEEE 802.15.4
• -20 to +3 dBm configurable TX power
• On-air compatible with nRF52, nRF51, nRF24L, and nRF24AP Series
• Supported data rates:
• Bluetooth 5.4 - 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
• IEEE 802.15.4-2006 - 250 kbps
• Proprietary 2.4 GHz - 2 Mbps, 1 Mbps
• Angle of Arrival (AoA) and Angle of Departure (AoD) direction finding
• 128-bit AES/ECB/CCM/AAR co-processor (on-the-fly packet encryption)
• SPI master/slave with EasyDMA
• I2C compatible two-wire master/slave with EasyDMA
• UART (CTS/RTS) with EasyDMA
• Up to 3x 32-bit timer with counter mode
• Up to 2x real-time counter (RTC)
Application Core
• ARM® Cortex®-M33 with TrustZone® technology
• 128 MHz or 64 MHz operation
• Single-precision floating-point unit (FPU)
• Digital signal processing (DSP) instructions
• 1 MB flash and 512 kB low leakage RAM
• ARM TrustZone CryptoCell™-312 security subsystem
• USB 2.0 full speed (12Mbps) controller
• QSPI peripheral for communicating with an external flash memory device
• Near field communication (NFC-A) tag with wake-on field
• Up to 5x SPI master/slave with EasyDMA
• Up to 4x I2C compatible two-wire master/slave with EasyDMA
• Up to 4x UART (CTS/RTS) with EasyDMA
• Audio peripherals: I2S, digital microphone interface (PDM)
• Up to 4x pulse width modulator (PWM) units with EasyDMA
• 12-bit, 200 ksps ADC with EasyDMA - eight configurable channels with programmable gain
• Up to 3x 32-bit timer with counter mode
• Up to 2x 24-bit real-time counter (RTC)
• Up to 2x Quadrature decoder (QDEC)
[nRF7002] AN7002Q-P Spec (Ver.1.1)
Specification(Bluetooth)：
[nRF5340] MDBT53-1M & MDBT53-P1M Spec (Ver.E)
Design Guide includes
AN7002Q & AN7002Q-P & AN7002Q-U Footprint_Design Guide (250722)
MDBT53 & MDBT53-P & MDBT53-U Footprint & Design Guide (241021)
- Footprint (compatible for Protel, Altium Design)
- 2D/3D drawing
- Reflow/Solder Profile
- Spec for external 32.768KHz
RoHS & REACH Reports：
RoHS & REACH Report for AN7002Q & AN7002Q-P & AN7002Q-U
RoHS & REACH Report for MDBT53 & MDBT53-P & MDBT53-U
